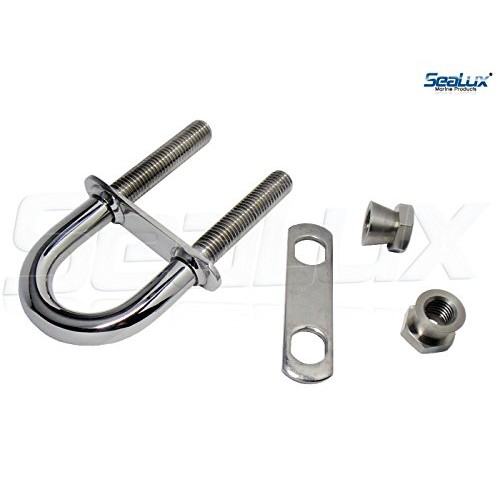

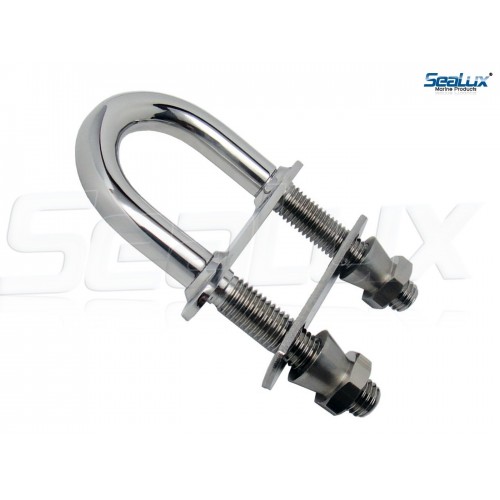

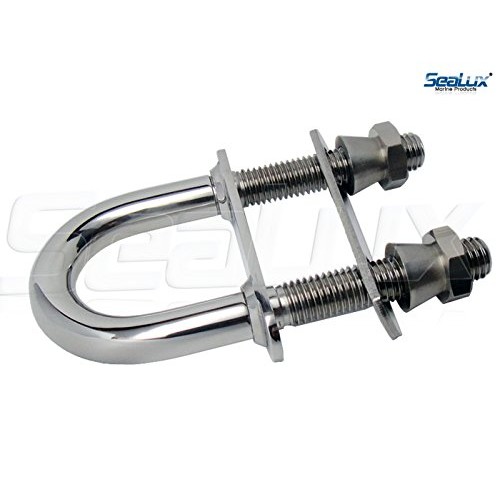

• Unique Design with Taper Security Lock Nut, To be used together with class 3 chain and padlock to ensure safe locking and to fulfill insurance regulations.
• Constructed of polished AISI 316 stainless steel, to minimize potential corrosion.
• This Bow Eye measures approximately 3" W x 4-3/4" H x 3/4" D overall and has (2) approximate 1/2" diameter x 2-3/8" long threaded bolts with 1 7/8" apart center on center.
• Bow Eye Opening: 1 3/4" Stainless Steel Taper Security Nuts, Washers and installation instruction are included

Product details

SeaLux Marine AISI 316 Stainless Steel Heavy Duty Class III Bow Eye with Taper Safety Lock Nut 1/2" (M12) Stock (4-3/4") Length, 6000 lbs Capacity ;

Material: Polished AISI 316 Stainless Steel

Height: 4-3/4"

Stud Diameter: 1/2"

Thread Length: 2 3/8"

Center on Center: 1 7/8" (46 mm)

Bow Eye Opening: 1 3/4"

Space Between Studs: 1-3/8"

Nuts and washer included

Instruction / installation manual included.

Southco Part# M7-32-9506512
